IR-T1 TileBallast™

Solar Module Roof Mount

Melana Solar

IR-T1 TileBallast

  • No Penetration
  • No Tile Removal
  • 4x Faster Install Times
  • For Use With All Rail Systems
  • Tested for 175lbs of Uplift
  • Integrated Flex Point Prevents Bolt Tension From Cracking Tiles
Engineering / Datasheets

The IR-T1 is the first of its kind and the only tile roof hook that requires no removal of tiles and no roof penetration at all. The IR-T1 TileBallast™ System is 4x faster to install than traditional tile roof hooks and much stronger, since our proprietary installation system actually increases the overall strength of the entire roof structure. When installed using our test proven IntegraGel Epoxy, each bracket uses the weight of the heavy concrete tiles which are nested and overlapping each other. With this system, each bracket is capable of withstanding over 175lbs of uplift and transforms standard roof tiles into a larger foot ballast system for the solar module rails to attach directly to. One tube of IntegraGel Epoxy is good for up to ten mounts, and comes FREE with every IR-T1 Ten Pack.

The IR-T1 is the first of its kind and the only tile roof hook that requires no removal of tiles and no roof penetration at all. The IR-T1 TileBallast™ System is 4x faster to install than traditional tile roof hooks and much stronger, since our proprietary installation system actually increases the overall strength of the entire roof structure. When installed using our test proven IntegraGel Epoxy, each bracket uses the weight of the heavy concrete tiles which are nested and overlapping each other. With this system, each bracket is capable of withstanding over 175lbs of uplift and transforms standard roof tiles into a larger foot ballast system for the solar module rails to attach directly to. One tube of IntegraGel Epoxy is good for up to ten mounts, and comes FREE with every IR-T1 Ten Pack.

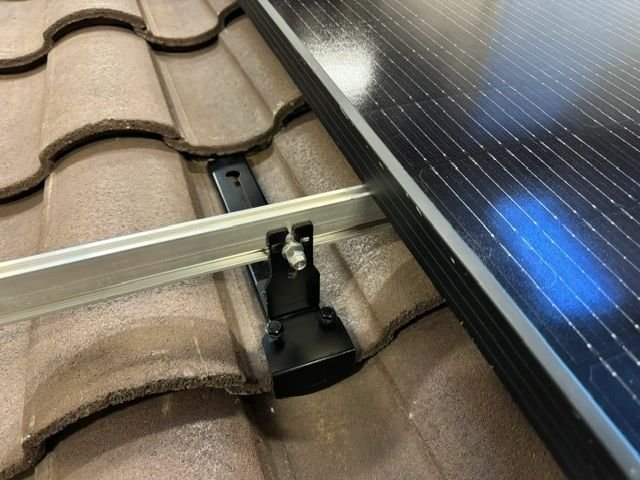

Each IR-T1 comes with a strong, integrated upright mount that can be attached to any rail system. The simplicity of this system allows for extremely fast and easy installations. With no need to remove and replace tiles on the roof, installers are much less fatigued on large jobs. Many installers see increased sales with home-owners that are worried about potential leaks and love the benefits of a non-invasive system.
Works with most all styles of concrete roof tiles with at least 1.25 inch thickness and 11.75-15.5 inch spacing. Only recommended for use with concrete roof tiles.

This product conforms to UL 2703 Mechanical and Bonding requirements.

Where to Buy
Step 1

via GIPHY

Measure and
Mark

Step 2

via GIPHY

Apply Recommended
Adhesive

Step 3

via GIPHY

Slide IR-T1 Tabs Under
Upper & Lower Row Of Tiles

Step 4

via GIPHY

Attach INCLUDED IR-L1 Bracketbr

Step 5

via GIPHY

Place Next Row

Step 6

via GIPHY

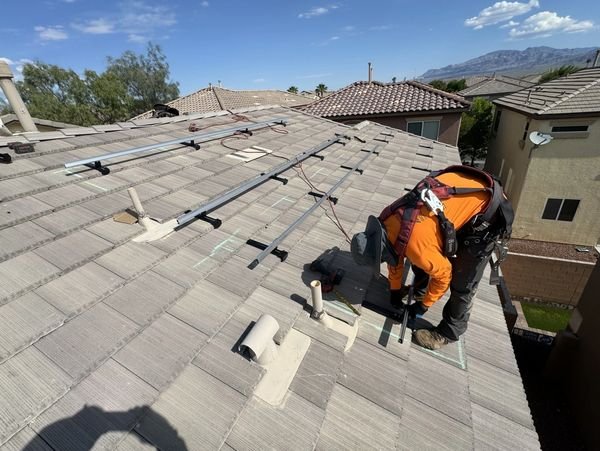

Mount Rail to L-Foot Bracket

Step 7

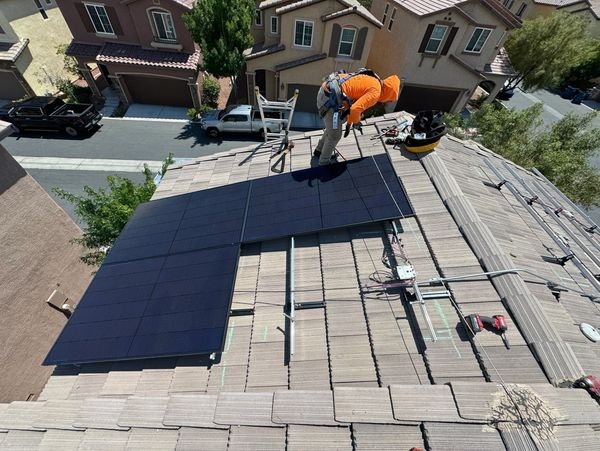

INSTALL MODULES ONTO RAILS

*Some media may show older versions of the IR-T1. Please refer to the image at the top of this page

FEATURES

No Tile Removal and No Roof Penetration

The IR-T1 TileBallast™ Bracket is the first tile roof hook that is 100% non-invasive, and its no penetration design along with our patent pending concrete adhesive installation method actually increases the strength of the entire roofing system. No roof warranty issues to deal with, and a huge selling point for homeowners to go solar without worrying about a leaking roof after the solar installation is complete.

For Use With All Rail Systems

The integrated upright allows for the mounting of any rail system like any standard tile hook. The two piece design of this upright creates a very solid support for any solar system, but offers just enough flexibility to withstand up to 150 mph wind speeds.

Lightning Fast Install

With its 100% non-invasive design, installation times are 4x faster than traditional tile roof hooks. The IR-T1 is by far the fastest and strongest tile roof hook available today.

High-Strength Tested

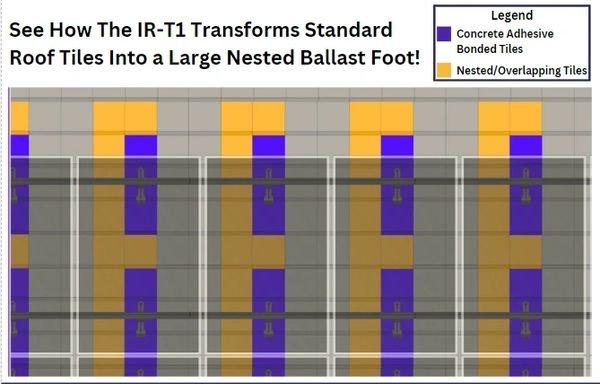

The IR-T1 utilizes a super high-strength tested concrete adhesive system to bond three roof tiles together along with the IR-T1’s two integrated mounting hooks bonded as one piece. This unique system creates a large heavy ballasted foot out of the three concrete roof tiles, and these bonded roof tiles are also held down and nested in place by five additional overlapping tiles.

IR-T1 No Penetration TileBallast™ Solar Module Mounting System

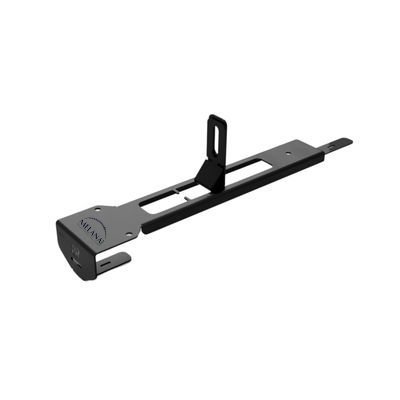

  • Part Number:  IR-T1TB1031
  • Material: 2mm Carbon Steel
  • Finish: Black Zinc

Engineered for 100% non-invasive tile roof installations. Roof brackets can be installed in less than 2 minutes and they do not require tile removal or any roof penetrations. Each mount has an integrated upright for mounting with all solar module rail systems. 10 Pack Kit includes ten mounts and one tube of IntegraGel Epoxy at no extra charge.

Additional Hardware (Included):

  • (2) M8-1.25x24mm Black Tile Tension Bolts

*Multiple Patents Pending

PRODUCT RESOURCES

Where to Buy
Where to Buy

FREQUENTLY ASKED QUESTIONS

Please reach out to info@melanaworldsolar.com if you cannot find an answer to your question.

Does this bracket work with rail systems?

Yes, the integrated upright has an open slot similar to most standard tile roof hooks and can be used with any standard rail system.

How strong is this bracket?

The IR-T1 is stronger and more stable than most traditional tile roof hooks and is capable of withstanding up to 150 mph winds and 175 lbs of uplift per mount.

Will this system weaken the roof structure?

With no need to remove the existing roof tiles or penetrate the roof in any way, there is no risk of leaks, broken roof tiles, or damaged trusses. Using our patent pending bonding method with the IntegraGel Epoxy, each IR-T1 actually bonds multiple tiles together, making the roof stronger and more secure than before.

What types of roof tiles is the IR-T1 compatible with?

The IR-T1 is compatible with Flat, S and W style concrete roof tiles with 11.75" - 15.5" row spacing.
